Postprocessing

A non-exhaustive collection of spectral to spatial discretization and postprocessing routines.

Spatial discretization

In the Limace.Discretization submodule, some methods to discretize BasisElement and eigenvectors are provided.

A fully manual discretization routine is given by

discretize(b, r, θ, ϕ, V::Volume=Sphere())

b = BasisElement(Basis{Inviscid,Sphere}, Poloidal, (2,0,1))
Limace.Discretization.discretize(b, 0.9, π/4, 3π/2)

discretize(αs::Vector{T}, u::TU, rs, θ, ϕ) where {T<:Number,TU<:Basis}

To evaluate one BasisElement at a given point $(r,\theta,\phi)$, we can do

using Limace.Discretization: discretize
u = Inviscid(10)
b = BasisElement(u, Poloidal, (2,0,1))
r,θ,ϕ = 0.9, π/4, 3π/2
discretize(b, r,θ,ϕ)

3-element StaticArraysCore.SVector{3, ComplexF64} with indices SOneTo(3):
  0.05686000202511553 + 0.0im
 -0.21626856102305547 + 5.634722292314655e-33im
                  0.0 + 0.0im

The same also works for a vector of BasisElements.

bs = [BasisElement(u, Poloidal, (2,0,1)), BasisElement(u, Poloidal, (2,0,2))]
discretize(bs, r,θ,ϕ)

3-element StaticArraysCore.SVector{3, ComplexF64} with indices SOneTo(3):
  0.0648005036787584 + 0.0im
 -0.9251770367151191 + 2.410482433718393e-32im
                 0.0 + 0.0im

To discretize an eigenvector using Limace.Discretization.discretize, consider the following example of the Malkus modes

N = 6
Le = 1e-1

u = Inviscid(N)
b = PerfectlyConducting(N)

bases = [u,b]

B0 = BasisElement(b, Toroidal, (1,0,0), 2sqrt(2pi/15))
forcings = [Limace.Inertial(u), Limace.Inertial(b), Limace.Coriolis(u, 1/Le), Limace.Lorentz(u, b, B0), Limace.InductionB0(b,u,B0)]

problem = LimaceProblem(bases, forcings)
Limace.assemble!(problem)
Limace.solve!(problem)

We can chose a single eigenvector x and define some arbitrary spatial grid for r, θ and ϕ:

x = problem.sol.vectors[:,1]
nr,nθ,nϕ = 20,30,40
r = range(0.01,0.99, length=nr)
θ = range(0.01,π-0.01,length=nθ)
ϕ = range(0,2π, length=nϕ)
ur,uθ,uϕ, br, bθ, bϕ = discretize(x, u, b, r, π/2 .- θ, ϕ)
size(ur)

(20, 30, 40)

For more performant transforms to spatial space, it is recommended to use Limace.Discretization.spectospat, which relies on fast vector spherical harmonic transforms provided through SHTns.jl.

spectospat(coeffs::Vector{T}, u::TU, nr::Int, nθ::Int, nϕ::Int; kwargs...) where {TU<:Basis, T<:ComplexF64}

spectospat(coeffs::Vector{T}, u::TU, r::Float64, nθ::Int, nϕ::Int; kwargs...) where {TU<:Basis, T<:ComplexF64}

spectospat(coeffs::Vector{T}, u::TU, b::TB, nr::Int, nθ::Int, nϕ::Int; kwargs...) where {TU<:Basis, TB<:Basis, T<:ComplexF64}

spectospat(coeffs::Vector{T}, u::TU, b::TB, r::Tr, nθ::Int, nϕ::Int; kwargs...) where {TU<:Basis, TB<:Basis, T<:ComplexF64, Tr<:Union{AbstractVector{Float64},Float64}}

To discretize the eigenvector x on a Gauss-Legendre grid in r and θ, as well as equidistant grid in ϕ, we can call spectospat:

using Limace.Discretization: spectospat
ur,uθ,uϕ, br,bθ,bϕ, r,θ,ϕ = spectospat(x, u, b, nr, nθ, nϕ)

Filtering of spectrum

When the background state couples different spectral degrees (may be in radius, spherical harmonic degree or order), the solutions are only truncated approximations of the true solution. This is not the case, for example, for the Inviscid inertial modes or the Malkus modes, which are fully resolved at one truncation degree and are therefore perfectly converged. In all other cases, the computed eigen spectrum will contain some unconverged solutions that need to be filtered out before further analysis.

To check convergence of the solutions, Limace.jl provides the following filters

eigenvalue_filter(evals1, evals2; λtol)

eigenvector_filter(evecs, u, b; thresh)

numerical_filter(
    evecs1,
    evecs2,
    evals1,
    evals2,
    u1,
    u2,
    b1,
    b2;
    threshc,
    λtol,
    threads,
    epeakratiothresh,
    kwargs...
)

After numerical convergence is validated, one can further filter the spectrum using for example a filter that determines the observability of a mode. In the geomagnetic context, observability of a mode may be determined by the peak spherical harmonic degree of the poloidal magnetic field of a mode, which should lie below the maximum resolvable degree of the considered geomagnetic model (e.g. $l\leq 17$ for the secular variation in the CHAOS-7 model).

observability_filter(
    evals,
    evecs,
    u,
    b;
    ωlow,
    ωhigh,
    Qlow,
    lthresh
)

Energy and spectra

To compute the (kinetic and magnetic) energies of the modes, one can use

energies(problem::LimaceProblem)

See the example usage of energies in the Malkus mode example, which shows how to plot a frequency vs. energy-ratio spectrum.

Limace.jl also provides routines to compute the spectrum of an eigenvector as a function of spherical harmonic degree, spherical harmonic order, radial degree, or Cartesian degree.

spectrum(evecs, u, b; lmn)

spectrum(problem; lmn)

spectrum_cartesian(evecs, u, b)

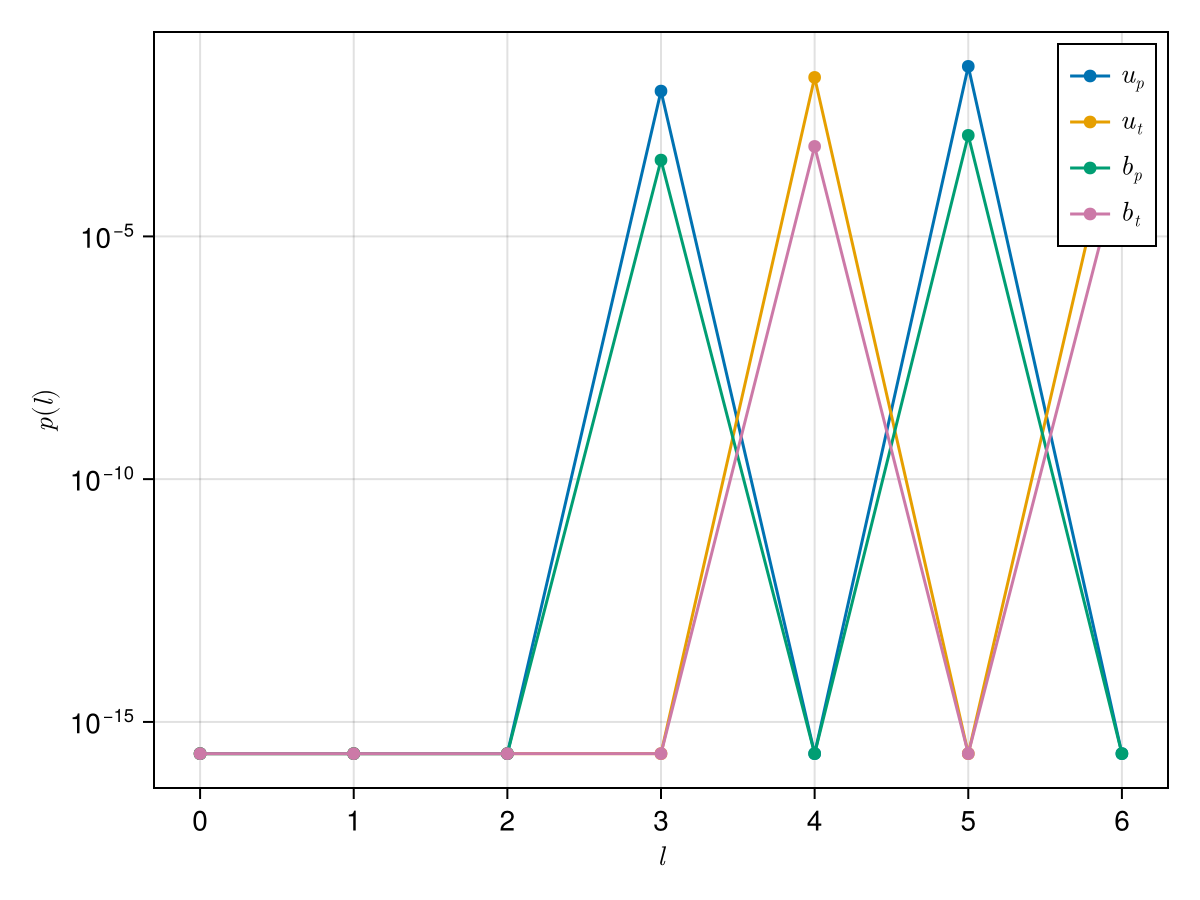

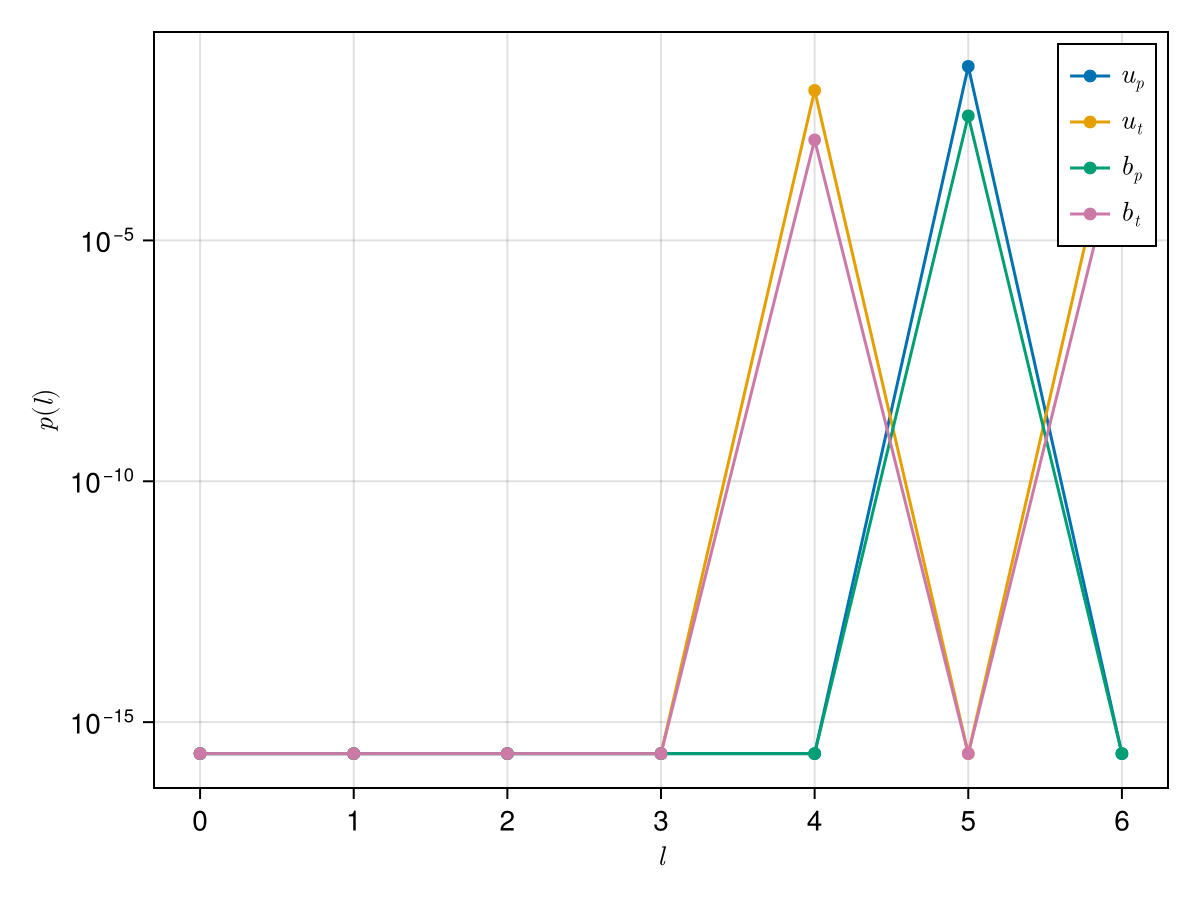

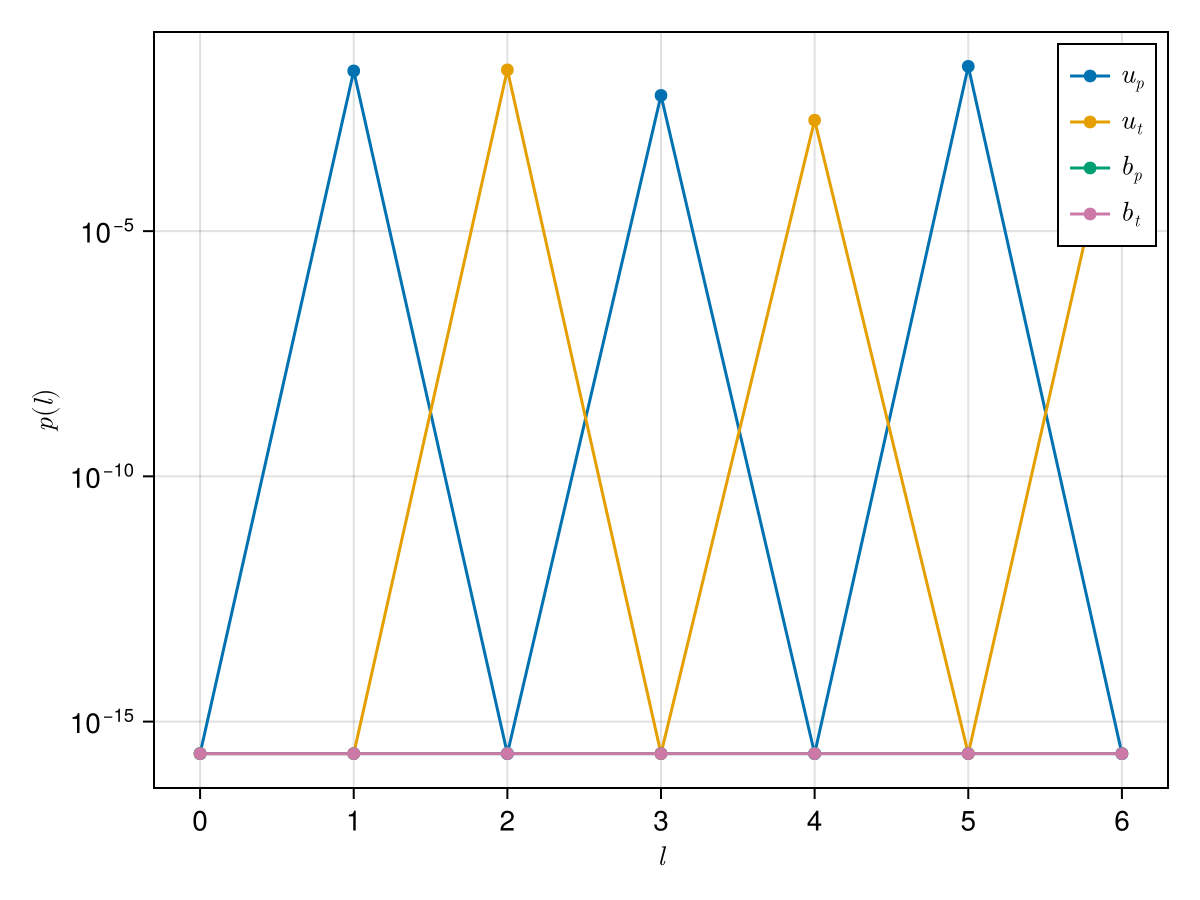

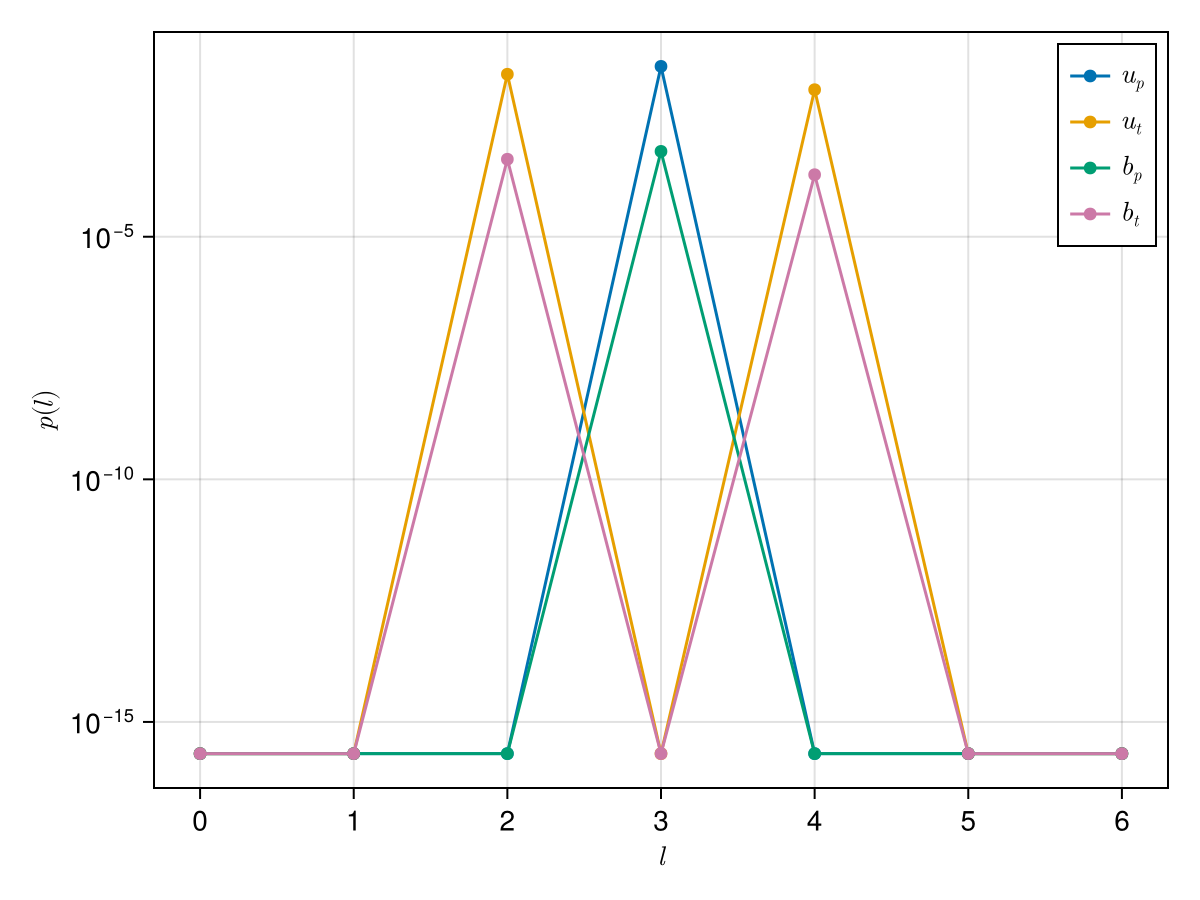

For example, we can compute the spectra of the modes and plot them for one solution like this:

ls, p_up, p_ut, p_bp, p_bt = Limace.Processing.spectrum(problem, lmn=1)

using CairoMakie

let
	f = Figure()
	ax = Axis(f[1,1], xlabel=L"l", ylabel=L"p(l)", yscale=log10)
	for (spec,label) in zip((p_up, p_ut, p_bp, p_bt),(L"u_p", L"u_t", L"b_p", L"b_t"))
		scatterlines!(ax, ls, spec[:,1].+eps(); label)
	end
	axislegend(ax)
	f
end

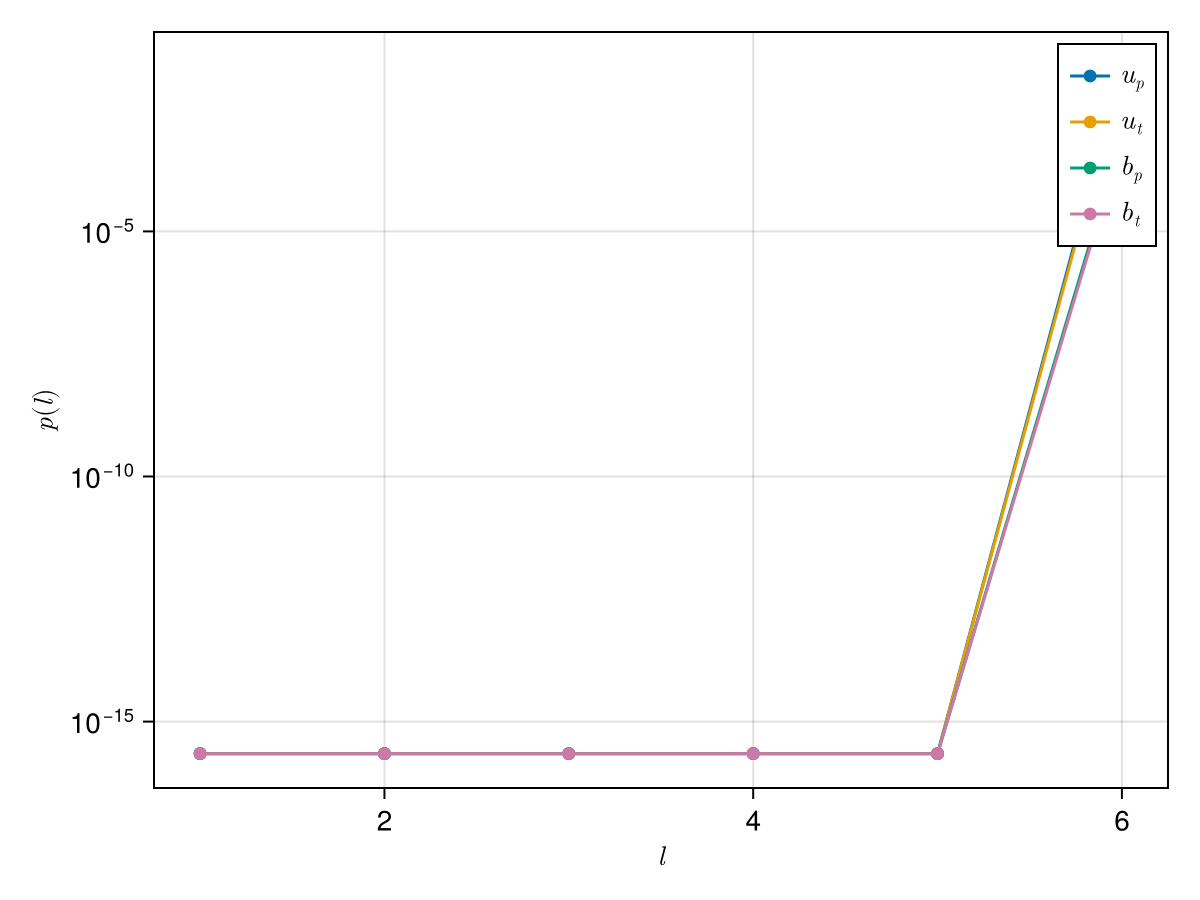

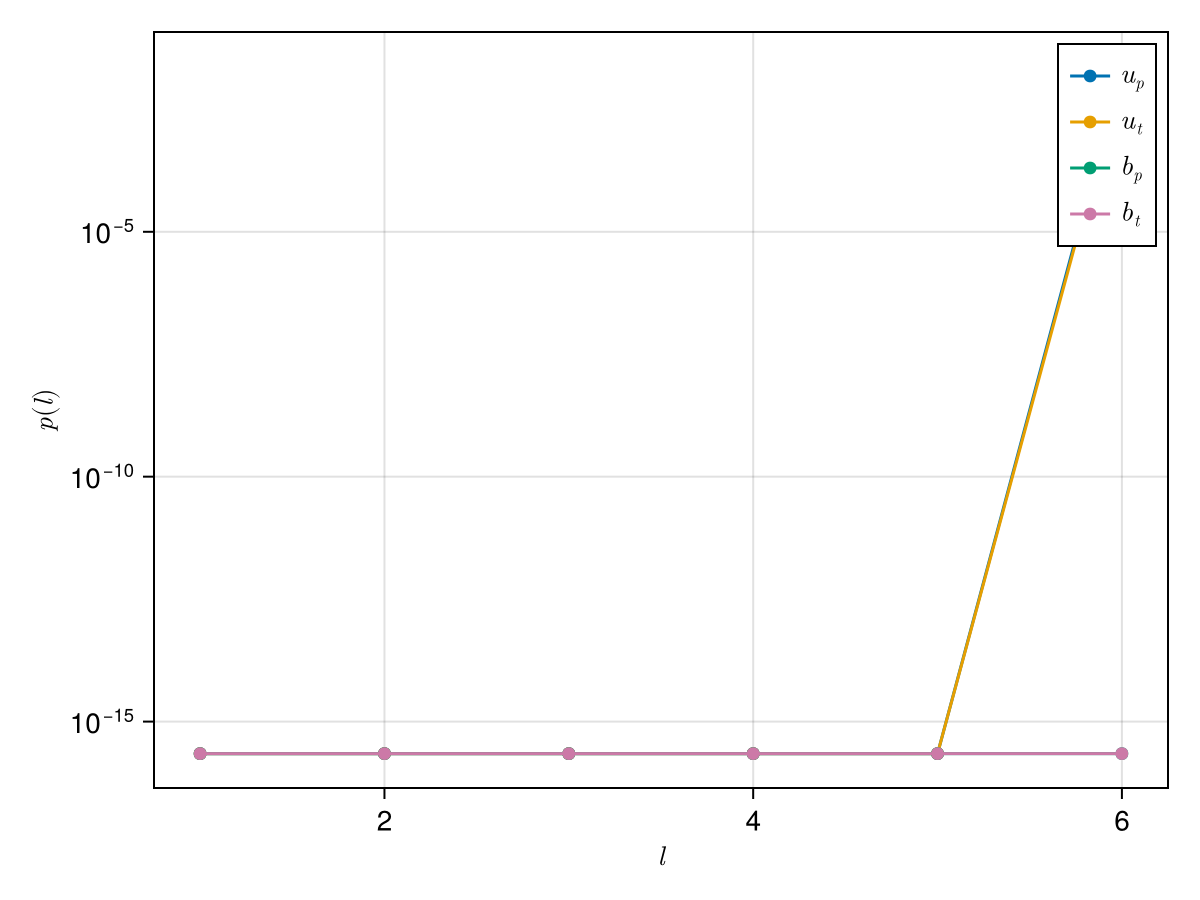

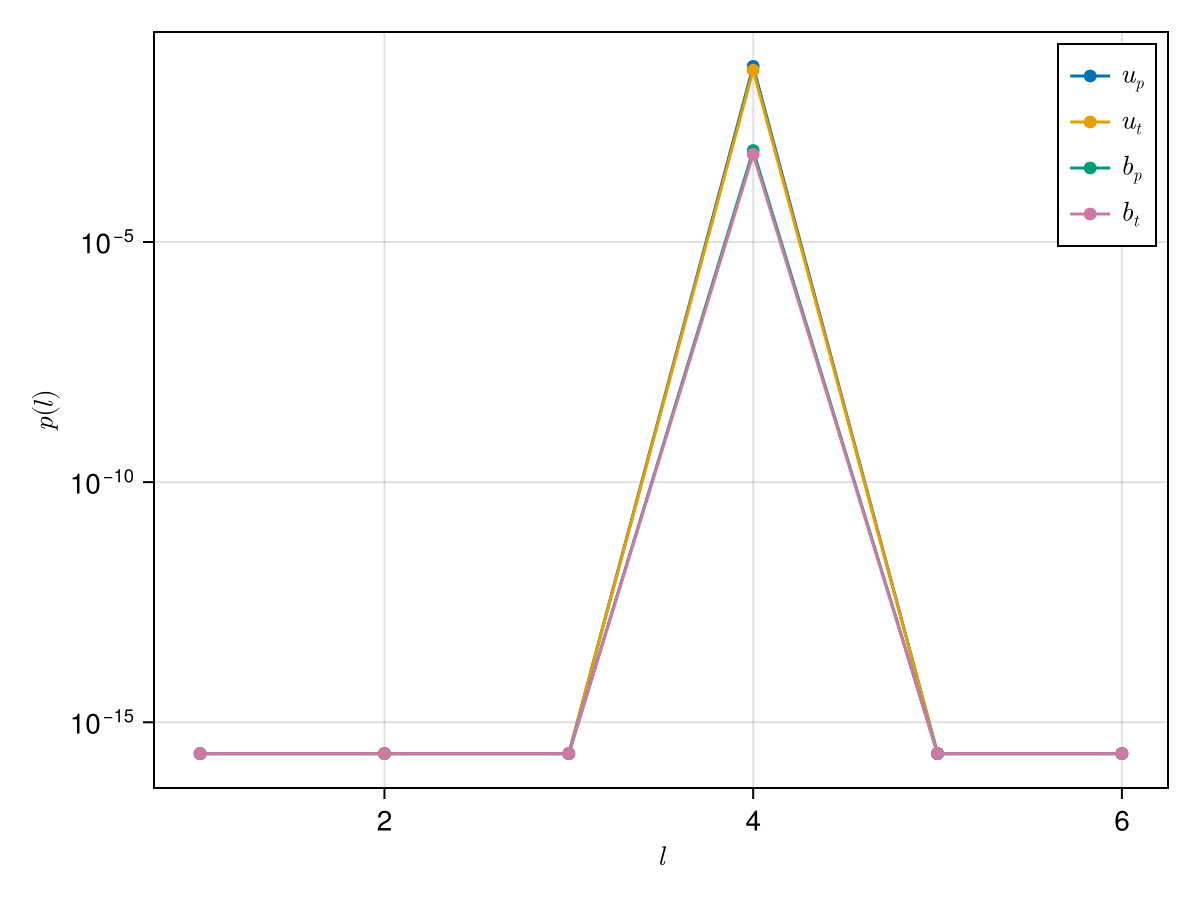

and to do the same as a function of Cartesian polynomial degree

p_up, p_ut, p_bp, p_bt = Limace.Processing.spectrum_cartesian(problem.sol.vectors, problem.bases...)
ns = 1:problem.bases[1].N

let
	f = Figure()
	ax = Axis(f[1,1], xlabel=L"l", ylabel=L"p(l)", yscale=log10)
	for (spec,label) in zip((p_up, p_ut, p_bp, p_bt),(L"u_p", L"u_t", L"b_p", L"b_t"))
		scatterlines!(ax, ns, spec[:,1].+eps(); label)
	end
	axislegend(ax)
	f
end

Misc functions

Some convenient functions that are used for other postprocessing routines.

epeak_etrunc_cartesian(evecs, u, b)

lmn_n(u, b)
