Torsional Alfvén modes

Torsional Alfvén modes exist when a conducting fluid is under rapid rotation, so that the rotation time $t_\Omega$ is much shorter than the Alfvén time $t_A=L\sqrt{\mu_0\rho}/B_0$. Put differently, the Lehnert number $\mathrm{Le}= t_\Omega/t_A \ll 1$. Then, the flow is dominated by a geostrophic balance at the leading order, and slight departures from the geostrophic balance are restored through the Lorentz force. The result are torsional Alfvén modes (or waves), that are in essence differentially rotating geostrophic cylinders, that stretch the cylindrical radial magnetic field lines that permeate them.

A one-dimensional equation can be derived in the diffusionless limit (Braginsky, 1970). Using Limace.jl, we can instead compute weakly diffusive torsional Alfvén modes as solutions to a two-dimensional problem, when the background magnetic field is axisymmetric. In this case, all azimuthal wavenumbers $m$ decouple and we can focus on $m=0$.

In the following example we will solve and illustrate the gravest torsional mode, for an axisymmetric poloidal background magnetic field.

using Limace, LinearAlgebra, SparseArrays, CairoMakie
using Limace.EigenSolve: eigstarget
using Limace.Discretization: spectospat

Assembly

We can assemble the submatrices and concatenate them to get our final left hand side matrix LHS and right hand side matrix RHS.

Here, the non-dimensional parameters are the Lehnert number Le and the Lundquist number Lu. We give the resolution by an integer N, that determines the polynomial degree of our solutions. We define B0 as a collection of two BasisElement's, an arbitrary mix of two poloidal field components, l,m,n=(1,0,1) and l,m,n = (2,0,1), i.e. dipolar and quadrupolar symmetry. Define parameters, inviscid and insulating bases, and background magnetic field:

N = 80
Le = 5e-4
Lu = 1/Le

u = Inviscid(N; m=0)
b = Insulating(N; m=0)
B0 = [BasisElement(b, Poloidal, (1,0,1),0.3), BasisElement(b, Poloidal, (2,0,1),0.7)]
2-element Vector{BasisElement{Basis{Insulating, Sphere}, Poloidal, Float64}}:
 BasisElement{Basis{Insulating, Sphere}, Poloidal, Float64}((1, 0, 1), 0.3)
 BasisElement{Basis{Insulating, Sphere}, Poloidal, Float64}((2, 0, 1), 0.7)

The factors 0.3 and 0.7 are arbitrary, but they can be used to adjust the relative strength of the components of the background magnetic field. We can now put it together in a LimaceProblem.

bases = [u, b]
forcings = [Limace.Inertial(u), Limace.Inertial(b), Limace.Coriolis(u, 1/Le), Limace.Lorentz(u,b,B0), Limace.InductionB0(b,u,B0), Limace.Diffusion(b, 1/Lu)]
problem = LimaceProblem(bases, forcings);

Assemble the problem matrices:

Limace.assemble!(problem; threads=true);

Solve the eigen problem

We can calculate some eigenvalues and vectors near a given target. For torsional modes it is sensible to choose a target near λ = -σ+im*ω = 1.0im, i.e. an Alfvén frequency of 1 (note: this only the case, when using the Alfvén time as the characteristic time-scale in the nondimensionalization).

target = 1.0im
0.0 + 1.0im

The problem can be solved using Limace.solve! with the :sparse method and the target keyword argument, which is based on shift-invert spectral transform and an implicitly restarted Arnoldi method. The keyword nev can be set to the desired number of eigenvalues.

Limace.solve!(problem; method=:sparse, target, nev=5);

The LimaceProblem object now contains the eigenvalues and eigenvectors in problem.sol.values and problem.sol.vectors, respectively.

λ, x = problem.sol.values, problem.sol.vectors;

Alternatively, one can use the eigstarget function using the problem matrices directly:

λ, x = eigstarget(problem.RHS, problem.LHS, target; nev=5);

Plot the solution

We find the solution of largest real part, corresponding to the smallest damping rate. In this simple example this is enough to isolate the gravest torsional mode from the other calculated solutions.

per = sortperm(λ, by = real, rev=true);
λ[per]
5-element Vector{ComplexF64}:
 -0.030074398112926358 + 0.9333783604994308im
  -0.10749599803344063 + 1.1270377233489102im
  -0.21077895526842474 + 1.3663210482480397im
   -0.2767407178919034 + 1.6030398161884234im
  -0.28215559604557794 + 1.9248770321142687im

We discretize the corresponding eigenvector in the meridional plane. Since $m=0$, we do not need more than one value of the longitude.

nr, nθ, nϕ = 2N+1, 2N+1, 1
y = x[:,per[1]]
y /= y[Limace.Bases.lmn2k_t_dict(u)[(1,0,1)] + Limace.Bases.np(u)] #norm by m=0 toroidal component.
ur,uθ,uϕ, br,bθ,bϕ, r,θ,ϕ = spectospat(y, u,b, nr,nθ,nϕ);

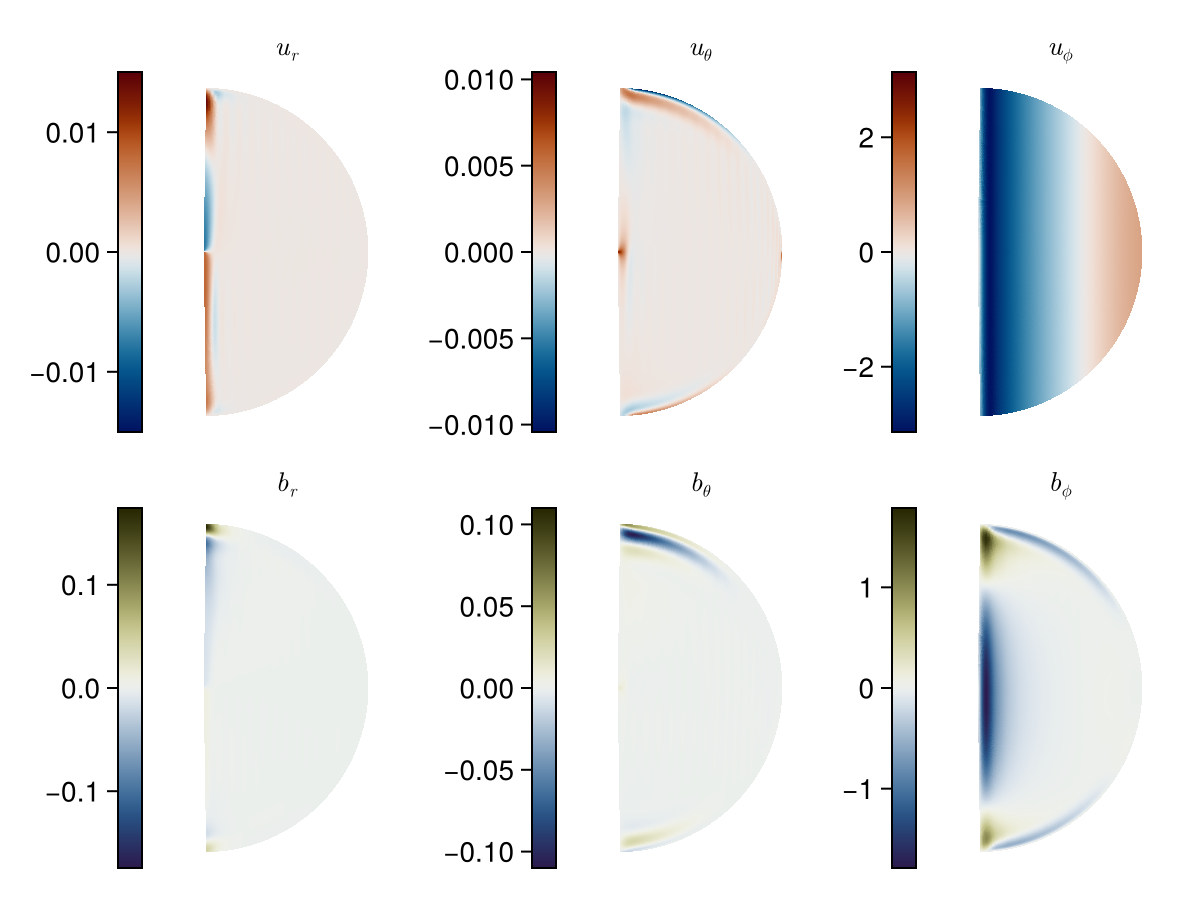

The meridional slices are plotted with CairoMakie.jl for example:

let
	f = Figure()
	for (i,(comp, title)) in enumerate(zip((ur, uθ, uϕ),(L"u_r", L"u_\theta", L"u_\phi")))
		ax = Axis(f[1,2i]; aspect=DataAspect(), title)
		hidedecorations!(ax)
		hidespines!(ax)
		x = r .* cos.(θ')
		y = r .* sin.(θ')
		z = real.(comp[:,:,1])
		clim = maximum(abs,z)
		cax = surface!(ax, x,y, z, colormap=:vik, colorrange=(-clim,clim),shading=NoShading)
		Colorbar(f[1,2i-1],cax, flipaxis=false)
	end
	for (i,(comp, title)) in enumerate(zip((br,bθ,bϕ),(L"b_r", L"b_\theta", L"b_\phi")))
		ax = Axis(f[2,2i]; aspect=DataAspect(), title)
		hidedecorations!(ax)
		hidespines!(ax)
		x = r .* cos.(θ')
		y = r .* sin.(θ')
		z = real.(comp[:,:,1])
		clim = maximum(abs,z)
		cax = surface!(ax, x,y, z, colormap=:broc, colorrange=(-clim,clim),shading=NoShading)
		Colorbar(f[2,2i-1],cax, flipaxis=false)
	end

	f
end
Example block output
